Fox 3.0 Factory Series Internal Bypass Coil Overs Sold as a Pair - Can also be used with ReadyLIFT Ford Raptor Mid-Travel Off Road Suspension Kit 44-2150 - Ford Raptor Mid Travel Upgrade Off Road Kit #44-1250 - Ford Raptor Off Road Series Lower Control Arms #44-2303

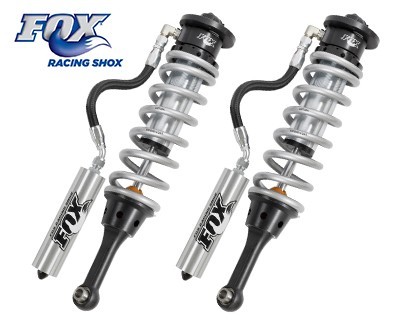

The FOX 3.0 Factory Series Coil-over Internal Bypass, position-sensitive shocks maximize the entire wheel travel, increases oil capacity, and adds 60% more damping area over the stock FOX SVT shocks. They allow for a plush predictable ride over normal offroad driving conditions and also have the ability to ramp up damping force for extreme use. These heavy-duty, steel-bodied shocks are loaded with anodized billet aluminum components and race-bred internal valving. They are designed to bolt right on to your factory mounts. The integrated coil spring can be adjusted for preload and ride height and come pre-set to level your vehicle right out of the box. Large 2.5 inch remote reservoirs with a large -10 hose increasing the shocks cooling capabilities. The 3.0 Factory Series Coil-over Internal Bypass shocks utilizing all of the same components found on Fox race winning Trophy Truck shocks with Eibach® springs, stainless steel shock shafts, PTFE-lined spherical bearings, proprietary racing oil and high-temp Viton® seals.
Body - 3.0" Smooth bore and honed seamless alloy body.
Body Plating - Zinc-plated for long lasting finish.
External Reservoir - 2.5" Smooth bore and honed seamless alloy reservoir.
Components - Black-anodized, CNC-machined 6061-T6 billet aluminum.
Spring - Application specific, adjustable 3.625 Eibach® racing springs.
Shaft - 7/8" 17-4 H900 stainless steel hard-chrome plated.
Piston - 6061-T6 hard-anodized, high flow aluminum piston.
Valving - Application specific valving to maximize performance.
Seals - Redundant sealing pack system main seal, wiper seal, scraper seal.
Oil - JM92 Advanced Suspension Fluid for improved performance at variable temperatures.
Bearing - PTFE-lined, heat-treated, alloy steel spherical.
Mounting - Direct replacement of OEM shock package.
FOX 3.0 FACTORY Series Coil-Over Bypass - For Use On 2010-2014 Ford Raptor SVT
